Technical Specifications
Corrected heavy-duty workbook-based parameters for the 5SL-400 model.
| Parameter | Specification |
|---|---|

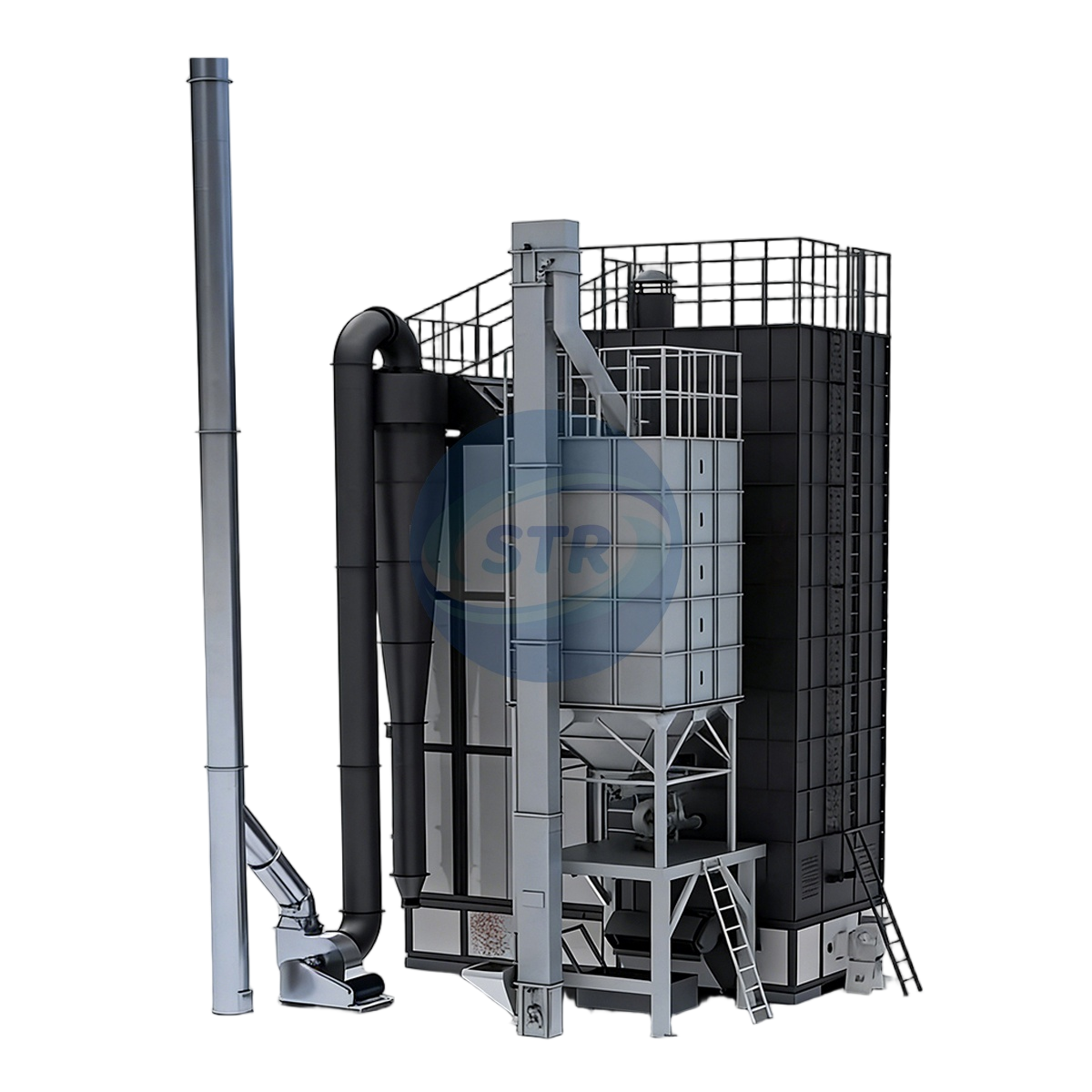

| Model | 5SL-400 Rice Husk Furnace |
| Heat capacity | 4 million KCAL/h |
| Dimensions | 7200 × 7350 × 10945 mm |
| Fuel consumption | 600–1000 kg/h |
| Ash discharge | 120–200 kg/h |
| Total power | 37.25 kW |
| Matched dryers | 5HHL-32 ×12 |
| Weight | 42000 kg |
| Combustion mode | Suspended combustion |
| Heating method | Indirect heating / indirect heat exchange |
| Thermal efficiency | ≥80% |
| Rated voltage | 220V/380V 50Hz |
| Fuel suitability | Rice husk, chaff, sawdust and similar renewable fuels |
Product Advantages
Why the 5SL-400 is the heavy-duty choice in the retained 5SL lineup.
Highest heat-output level in the series
The 5SL-400 is presented as the heavy-duty high-capacity choice for larger grain drying systems.
Multi-dryer industrial matching
Workbook matching at 5HHL-32 ×12 makes it suitable for broad multi-dryer industrial layouts.
Renewable-fuel industrial heating
It combines renewable husk-fuel operation with indirect heating and suspended combustion for large-scale drying support.
Key Features
Core confirmed features for the heavy-duty 5SL-400 model.
Suspended Combustion
Built around suspended combustion for strong renewable-fuel heat output.
Indirect Heat Exchange
Indirect heat exchange supports cleaner hot air for grain-dryer applications.
Renewable Fuel Use
Suitable for rice husk, chaff, sawdust and similar renewable fuels.
Automation Logic
Series-level materials confirm feeding, ash discharge and alarm-related operating functions.
Heavy-Duty Matching
Suitable for larger industrial dryer groups requiring very strong heat output.
Industrial Grain Drying
Designed for large drying systems and industrial matched-dryer installations.
Applications
Typical large-scale application scenarios for the 5SL-400.
Large Grain Drying Systems
Suitable for larger grain drying systems with substantial heat demand.
Multi-Dryer Industrial Layouts
Useful for industrial matched-dryer configurations across larger project scales.
Renewable-Fuel Grain Drying
Works where customers want strong heat output with renewable husk-fuel operation.
Heavy-Duty Drying Projects
Appropriate for heavy-duty drying projects requiring high-capacity indirect heating.
Need a Rice Husk Furnace for Your Project?
Contact Tongtai Group for rice husk furnace matching, heat-source planning, and project-oriented support for grain drying systems.
