Technical Specifications
Verified technical fields based on the current source workbook and website master materials.
| Parameter | Specification |
|---|---|

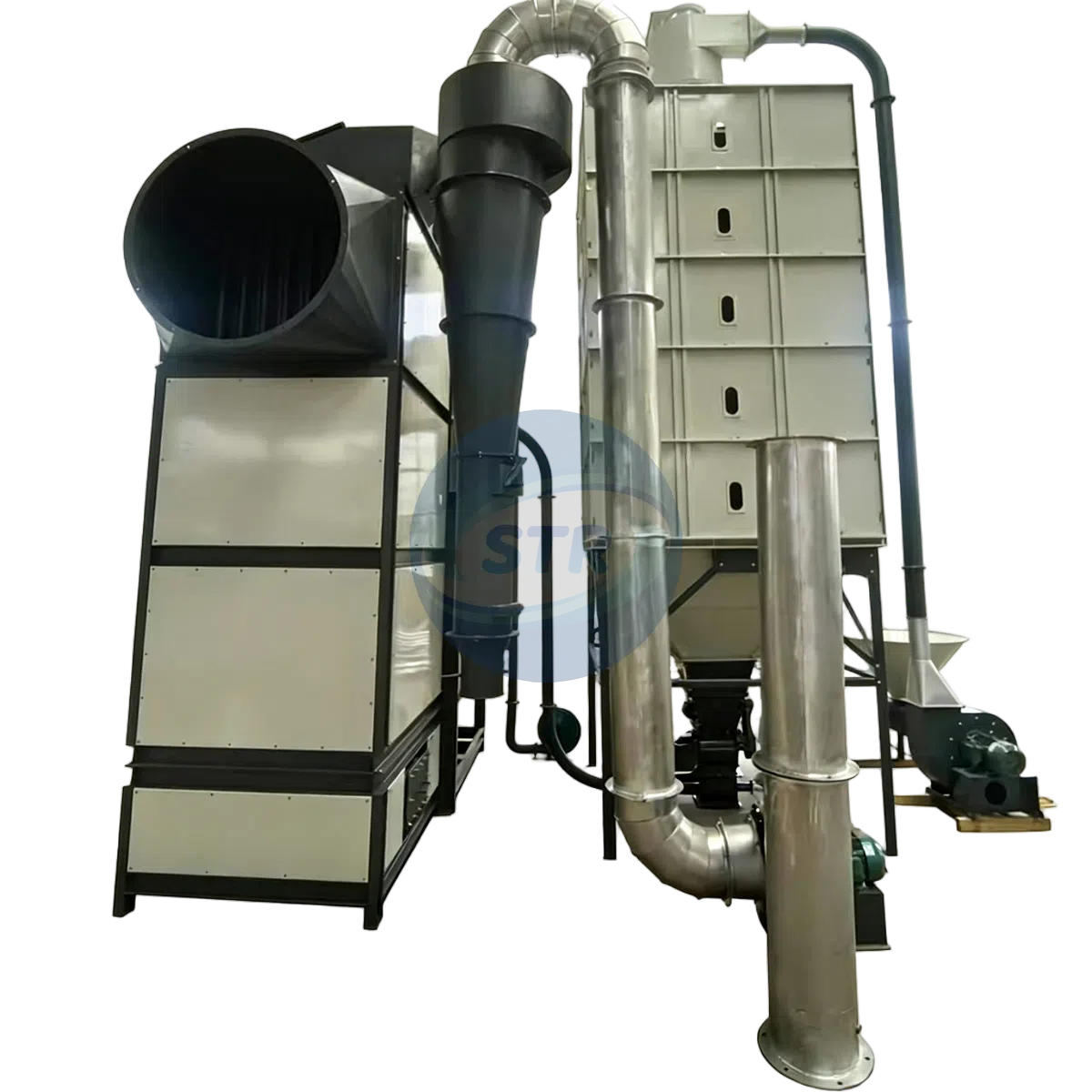

| Model | 5SL-80 Rice Husk Furnace |
| Heat capacity | 800,000 KCAL/h |
| Dimensions | 3500 × 5060 × 4830 mm |
| Fuel consumption | 80–250 kg/h |
| Ash discharge | 14–35 kg/h |
| Total power | 9.65 kW |
| Matched dryers | 5HHL-32 ×2 |
| Weight | 7800 kg |
| Combustion mode | Suspended combustion |
| Heating method | Indirect heating / indirect heat exchange |
| Thermal efficiency | ≥80% |
| Rated voltage | 220V/380V 50Hz |
| Fuel suitability | Rice husk, chaff, sawdust and similar renewable fuels |
Product Advantages
Why the 5SL-80 is a practical compact husk furnace for grain dryers.
Compact rice husk stove positioning
The 5SL-80 is positioned as a compact rice husk stove for smaller grain drying projects and matched dryer groups.
Indirect heat exchange
Indirect heat exchange helps deliver cleaner hot air to grain dryers while keeping renewable-fuel operation.
Practical automation
The source materials confirm automatic feeding, automatic ash discharge, abnormal alarm, and full-capacity alarm at series level.
Key Features
Core structural and operating features supported by the available source set.
Suspended Combustion
Suspended combustion is a confirmed series feature for the 5SL rice husk furnace family.
Indirect Hot-Air Delivery
Indirect heat exchange supports cleaner hot-air supply for grain drying work.
Renewable Biomass Fuel
Suitable for rice husk, chaff, sawdust and similar renewable fuels.
Automatic Feeding
The furnace series supports automatic feeding and practical operating convenience.
Automatic Ash Discharge
Automatic ash-discharge logic improves operation efficiency in daily use.
Alarm Functions
Abnormal alarm and full-capacity alarm functions are confirmed in the source workbook.
Applications
Typical project scenarios for the compact 5SL-80 model.
Smaller Grain Dryers
Suitable for smaller batch dryers that need renewable-fuel hot-air support.
Paddy and Grain Drying
Practical for grain drying systems that use rice husk or similar biomass fuel.
Compact Drying Projects
Useful where installation scale and investment control matter.
Matched Furnace Projects
Positioned for matched dryer installations rather than large centralized drying hubs.
Need a Rice Husk Furnace for Your Project?
Contact Tongtai Group for rice husk furnace matching, heat-source planning, and project-oriented support for grain drying systems.
