Technical Specifications

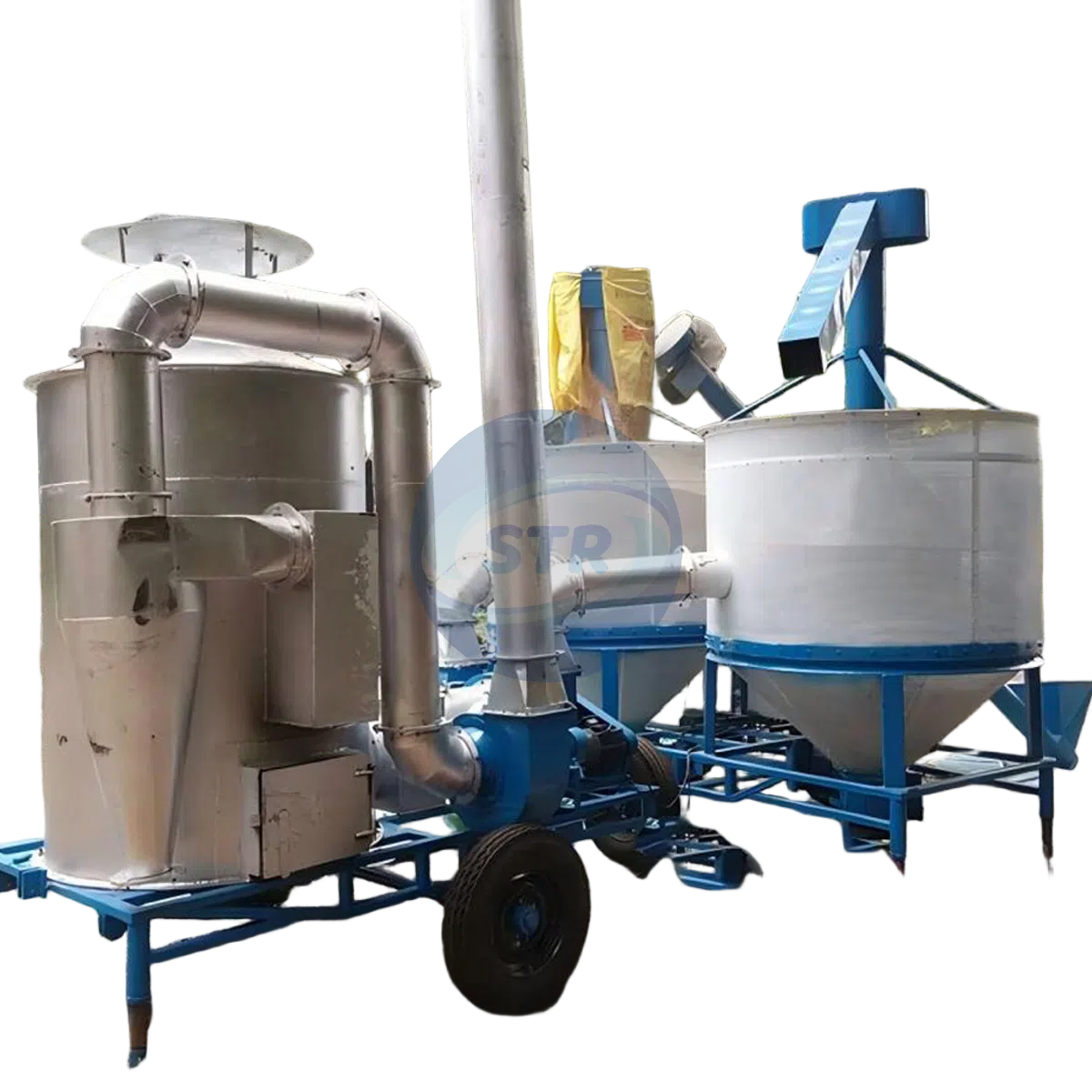

Key operating parameters for the 5HG-2.5A-2 mobile grain dryer.
| Parameter | Specification |
|---|---|
| Model | 5HG-2.5A-2 Mobile Grain Dryer |
| Drying Tower Volume | 10 m³ / 2 silos |
| Grain Load | 8000–9000 kg |
| Motor Power | 17 kW table reference / 21 kW later source reference |
| Power Consumption | 10–12 kWh |
| Fuel Consumption | 25–30 kg/h |
| Capacity | 30–50 t/day |
| Weight | 5 t |
| Footprint | 30 m² |
| Structure | 2 platforms + 2 bins |
| Fuel Options | Firewood, coal, oil, and gas according to configuration |
| Drying Logic | Indirect heating with clean hot-air drying |
| Suitable Crops | Corn, rice, wheat, barley, rapeseed, sorghum, and soybean |
Mobility Advantages
Why choose this larger dual-bin mobile drying system?
Dual-Bin Structure for Larger Loading
Compared with smaller mobile models, the dual-bin layout provides higher single-batch loading capacity and more practical processing efficiency.
Portable Layout with Better Transport Logic
The design was changed from one large 10 m³ bin to a dual-bin structure to improve transportation practicality while keeping larger mobile capacity.
Clean Hot-Air Drying
Indirect heating helps keep heated air separate from direct flame or gas contact, supporting cleaner grain drying for corn, rice, and other crops.
Key Features
Built for stronger mobile drying output and larger project flexibility.
Two Platforms, Two Bins
The larger dual-bin structure helps improve single-batch loading and transport practicality.
Multi-Fuel Matching
The source materials support firewood, coal, oil, and gas according to configuration.
Indirect Heating System
Heating pipeline air first and then using clean hot air helps protect grain cleanliness during drying.
Complete Working Systems
The source set mentions feeding, discharging, circulation, and temperature-control systems.
Practical Drying Cycle
One batch can load about 7–8 tons, with average drying time around 5–7 hours under referenced conditions.
Transport-Oriented Design
Each bin has wheels underneath and the unit includes a trailer arrangement for mobile deployment.
Suitable for Corn and Rice
The source notes different circulation arrangements for low- and high-moisture corn and rice drying.
Generator Matching Available
The source mentions common matching with a 30/35 horsepower diesel generator for machine operation power supply.
Ideal Applications
Who benefits most from the 5HG-2.5A-2 mobile dryer?
Farms
Suitable for customers who need larger loading capacity while keeping the mobility of a portable dryer.
Grain Collectors
Useful for grain collection projects that need a bigger portable drying solution with better batch efficiency.
Portable Drying Projects
Practical for projects that need a larger mobile corn or rice dryer without switching to fixed-site systems.
High-Moisture Grain Work
The source materials note specific circulation arrangements for higher-moisture corn and rice drying.
Feed-Related Projects
The source set also positions this model as suitable for feed-related customers needing larger portable output.
Export and Transport-Sensitive Markets
The dual-bin structure is especially useful where transport practicality matters as much as drying capacity.
Take Mobile Drying Further
Contact Tongtai Group for technical details, configuration confirmation, and project consultation for the 5HG-2.5A-2 mobile grain dryer.
