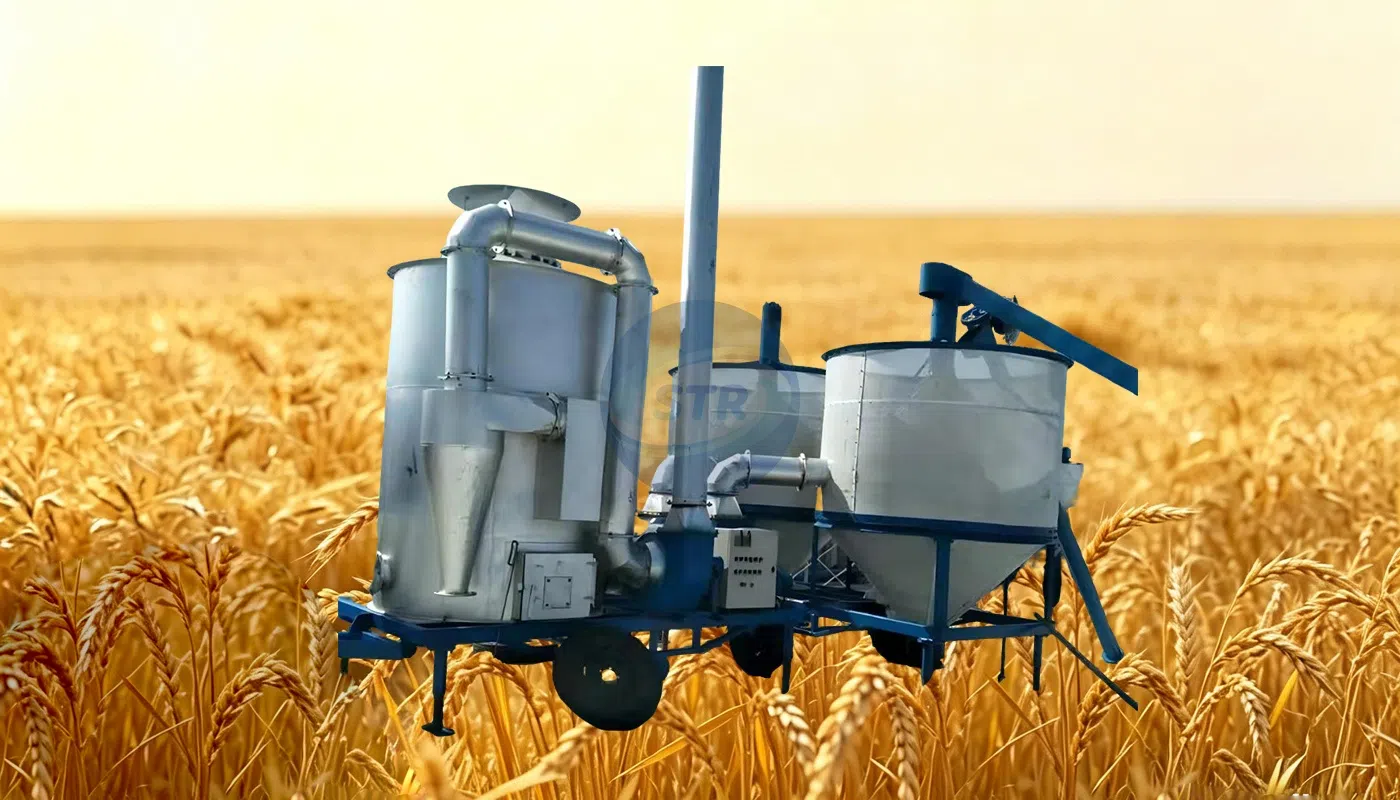

Mobile Grain Dryer
This mobile grain dryer series is designed for users who need flexible drying support in scattered farms, temporary work points, and project conditions where practical on-site deployment is important.
Get Detailed Technical InformationSeries Overview
The current mobile grain dryer lineup includes 5HG-0.75A, 5HG-1.5A-1, and 5HG-2.5A-2. According to the technical table, these models differ by drying tower volume, daily output range, motor power, hourly fuel consumption, equipment weight, occupied area, and configuration details.
Core Performance Advantages
Traction-Platform Layout
The table notes one-platform or two-platform configurations, making this series suitable for flexible field deployment and practical on-site drying work.
Different Fuel Matching
Depending on the model, supported fuel options include firewood, coal, diesel, gas, and in some cases biomass pellets.
System Configuration Details
The technical notes include feeding, discharging, circulation, temperature-control, and walking-system information instead of simple model-name assumptions.
Output Range by Day
The table gives daily output ranges directly, so this page uses those values rather than inferring capacity from the model code.
Core Models in This Series
The model summaries below follow the technical table and keep the original parameter logic, including output per day, tower volume, occupied area, equipment weight, and note-based configuration details.

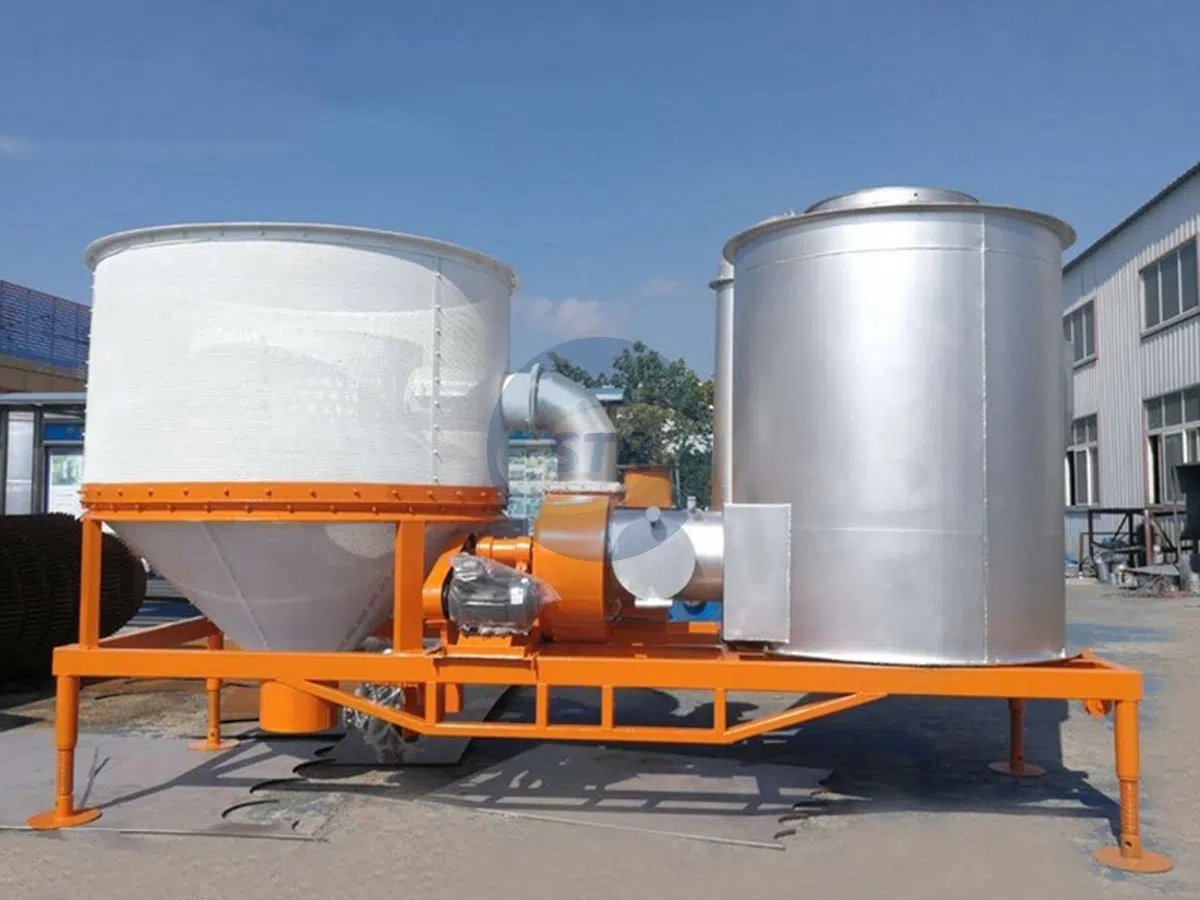

5HG-0.75A
One traction platform and one bin configuration for small-scale mobile drying work.
Drying Tower Volume: 3 m³ (1 bin), 1500–2000 kg
Motor Power: 9 kW (about 4–5 kWh)
Hourly Coal Consumption: 7–10 kg
Output: 7–10 T/day
Fuel Notes: Firewood, diesel, and gas can be used
View Technical Details
5HG-1.5A-1
One traction platform and one silo configuration for users who need higher daily output and broader fuel flexibility.
Drying Tower Volume: 5 m³ (1 silo), 3000–4500 kg
Motor Power: 12 kW (about 5–7 kWh)
Hourly Coal Consumption: 15–20 kg
Output: 15–30 T/day
Fuel Notes: Firewood, coal, diesel, gas, and biomass pellets can be used
View Technical Details

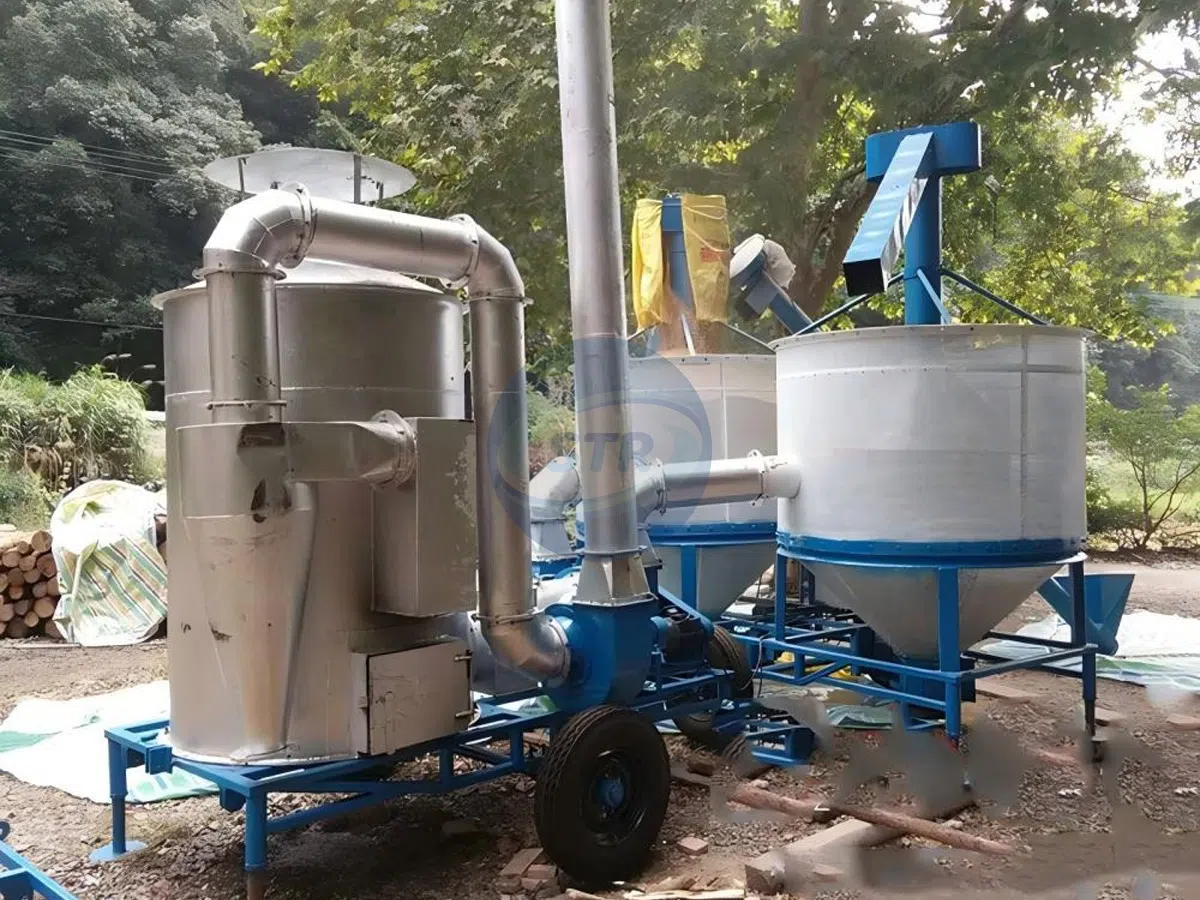

5HG-2.5A-2
Two-platform configuration with two bins, positioned for stronger daily output and broader corn or rice drying work.
Drying Tower Volume: 10 m³ (2 bins), 8000–9000 kg
Motor Power: 17 kW (about 10–12 kWh)
Hourly Coal Consumption: 25–30 kg
Output: 30–50 T/day
Technical Note: The table notes A/B drying logic for different moisture conditions in corn and rice drying
View Technical DetailsNeed a Mobile Dryer for Your Project?
Tell us your grain type, daily output target, available fuel, and site condition, and we will help you match a suitable mobile grain dryer model.
