Technical Specifications

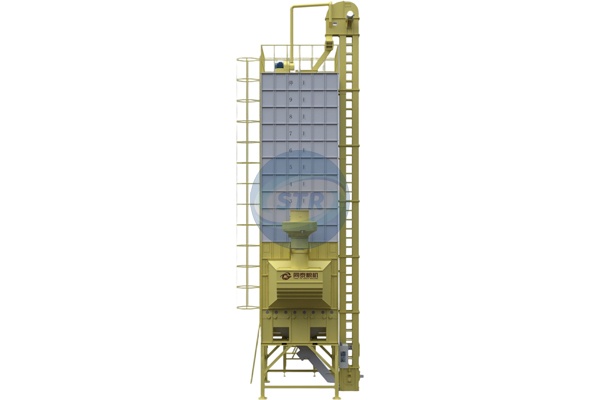

Complete technical parameters for 5HHL-32 Low-Temperature Circulating Grain Dryer
| Parameter | Specification |
|---|---|
| Model | 5HHL-32 Low-Temperature Circulating Dryer |
| Drying Type | Low Temperature Circulating |
| Hot Air Temperature | 50-70°C |
| Maximum Grain Temperature | 30-40°C |
| Machine Length | 4813 mm |
| Machine Width | 7113 mm |
| Machine Height | 14620 mm (14.62 meters) |
| Total Power | 19.35 KW |
| Rated Voltage | 3-Phase 220V/380V 50Hz/60Hz |
| Cycle Period | Approximately 75 minutes |
| Discharge Time | Approximately 65 minutes |
| Loading Time | Approximately 60 minutes |
| Drying Rate (Moisture Removal) | Generally 0.6%-1.0% per hour |
| Rice Fissure Rate | ≤3.0% |
| Fuel Types | Biomass, coal, oil, gas, natural gas, hot gas |
| Other Devices | Full-level Switch, Computerized Moisture Detector, Automatic Temperature Regulator, Timer Switch, Air Pressure Switch, Abnormal Overheat Alarm |
Product Advantages
Key benefits of 5HHL-32 Low-Temperature Circulating Dryer
One-Touch Operation, Automatic Running
Simplified automated operation reduces labor requirements and ensures consistent, repeatable drying results batch after batch.
Large Processing Capacity, Industry Leading
32 tons batch capacity provides high throughput for commercial operations. Industry-leading capacity in the traditional dryer category.
High Rice Yield Rate, Optimal Rice Quality
Low-temperature circulation technology minimizes grain damage. Reduces fissure rate to ≤3.0% and ensures superior milling quality with high head rice yield.
Multiple Safety Designs, Secure Operation
Comprehensive safety features including full-level switch, computerized moisture detector, automatic temperature regulator, timer switch, air pressure switch, and abnormal overheat alarm.
Energy Saving, Cost Reduction
Efficient thermal design and optimized airflow reduce energy consumption. Low operating costs with flexible fuel options and 19.35KW power consumption.
Stable Performance, Durable & Long-Lasting
Robust construction with quality components ensures reliable performance in harsh working environments. Extended service life with minimal maintenance requirements.
Product Features
Specialized features for large-scale commercial grain drying operations
Mature Low-Temperature Technology
Utilizes proven low-temperature circulation technology suitable for large-scale continuous grain drying operations. Reliable and time-tested performance.
Large-Scale Operation Optimized
Specifically designed for large grain bases and agricultural cooperatives. High capacity meets the demands of commercial grain processing facilities.
Harsh Environment Adaptation
Robust construction adapts to various harsh working environments. Built to withstand demanding operating conditions in agricultural settings.
Stable Performance
Consistent, reliable performance for continuous operation. Minimal downtime and maintenance requirements for high productivity.
Long Service Life
Durable construction and quality components ensure extended operational life. Built for years of reliable service in commercial applications.
Low Energy Consumption
Favored by customers for its low energy consumption. Efficient design reduces operating costs while maintaining high performance.
Efficient Drying Rate
Drying rate of 0.6%-1.0% moisture removal per hour. Optimized for productivity while maintaining grain quality.
Automated Control Systems
Integrated control systems including moisture detection, temperature regulation, and timing functions for precise drying control.
Capacity Specifications
Detailed capacity information for different grain types
| Grain Type | Bulk Density | Batch Capacity | Notes |
|---|---|---|---|
| Paddy (Rice) | 560 Kg/m³ | 32 tons | Standard reference capacity |
| Wheat | 580 Kg/m³ | 38 tons | Higher bulk density increases capacity |
| Corn/Maize | Approx. 720 Kg/m³ | Approx. 40-42 tons | Capacity varies with corn type and moisture |
| Soybean | Approx. 770 Kg/m³ | Approx. 44 tons | High oil content affects drying parameters |
| Barley | Approx. 620 Kg/m³ | Approx. 35 tons | Similar to wheat capacity |
Throughput Calculation Example:
*Capacity may vary based on grain type, initial moisture content, and operational efficiency.
Suitable Applications
Designed for large-scale commercial grain drying operations
Large Grain Bases
National and regional grain reserve facilities requiring high-capacity, reliable drying for storage operations.
Agricultural Cooperatives
Large farming cooperatives processing grains from hundreds of member farms with centralized drying facilities.
Commercial Processing Plants
Large rice mills, flour mills, and grain processing facilities with high throughput requirements.
Export Terminals
Grain export facilities at ports requiring rapid drying before shipment to meet quality standards.
Large Commercial Farms
Corporate farming operations with 500+ hectares of grain production requiring efficient harvest processing.
Industrial Grain Users
Breweries, distilleries, biofuel plants, and animal feed manufacturers with large grain intake requirements.
Supported Grain Types:
Safety & Control Features
Comprehensive safety systems for secure commercial operation
Full-level Switch
Automatically detects when the drying chamber is full and prevents overfilling. Ensures optimal loading for efficient drying.
Computerized Moisture Detector
Continuously monitors grain moisture content during drying. Provides real-time data for precise moisture control and automatic shutdown at target moisture levels.
Automatic Temperature Regulator
Maintains optimal drying temperature within the 50-70°C range. Prevents overheating that could damage grain quality.
Timer Switch
Programmable timing functions for automated drying cycles. Allows for precise control of drying duration for different grain types.
Air Pressure Switch
Monitors ventilation system pressure. Automatically shuts down if abnormal pressure conditions are detected to prevent equipment damage.
Abnormal Overheat Alarm
Audible and visual alarms activate if temperatures exceed safe limits. Prevents fire hazards and equipment damage.
Electrical Protection
Circuit breakers, overload protection, and ground fault protection for all electrical components. Ensures electrical safety during operation.
Emergency Stop System
Multiple emergency stop buttons located at strategic points. Immediate shutdown capability in case of emergency situations.
Fuel Options
Multiple fuel compatibility for operational flexibility and cost optimization
Economic Analysis
Cost-effective solution for large-scale commercial grain drying operations
High Throughput Efficiency
32 tons per batch enables processing of large harvests quickly. Reduces holding time, spoilage risk, and inventory costs.
Low Operating Costs
Only 19.35KW power consumption and flexible fuel options minimize daily expenses. Biomass fuel reduces costs by 40-60% compared to diesel.
Labor Efficiency
Automated operation reduces labor requirements. One operator can manage multiple units or perform other tasks simultaneously.
Premium Grain Quality
≤3.0% rice fissure rate preserves grain quality, resulting in higher market prices and better customer satisfaction.
Typical Return on Investment (32-ton capacity)
*Based on 25 days monthly operation, rice drying from 22% to 14% moisture, using biomass fuel at typical capacity.
Traditional Series Model Comparison
Understanding the differences to select the right model for your operation
| Parameter | 5HHL-15 | 5HHL-20 | 5HHL-32 |
|---|---|---|---|
| Batch Capacity (Paddy) | 7.5-14.85 tons | 15-20 tons | 32 tons |
| Machine Height | 9.87 m | 11.0 m | 14.62 m |
| Total Power | 6.5 kW | 10 kW | 19.35 kW |
| Weight | 3200 kg | 4500 kg | Not specified |
| Daily Capacity* | 45-75 tons | 90-140 tons | 192-224 tons |
| Monthly Capacity* | 1,125-1,875 tons | 2,250-3,500 tons | 4,800-5,600 tons |
| Best Application | Small farms, start-ups | Medium farms, cooperatives | Large bases, commercial plants |
| Building Requirement | ~11m eave height | ~12m eave height | ~16m eave height |
*Based on 20 hours daily operation, 25 days monthly operation. Capacity varies with grain type and initial moisture.
Commercial-Grade Drying Solution
The 5HHL-32 Low-Temperature Circulating Dryer offers industrial-scale capacity with proven reliability for large commercial operations. Contact our sales team today for volume pricing, delivery schedules, and customized configuration options.
