Biomass Pellet Furnace Series

Product Series Overview

Our Biomass Pellet Furnace Series utilizes clean, renewable biomass pellets to provide stable, high-temperature hot air for grain drying. From 450,000 to 1,000,000 Kcal/hour, we have models to suit various dryer sizes and applications. These furnaces feature automatic operation, high combustion efficiency, and low emissions, making them an ideal heating solution for grain depots, processing plants, agricultural cooperatives, and large drying bases.

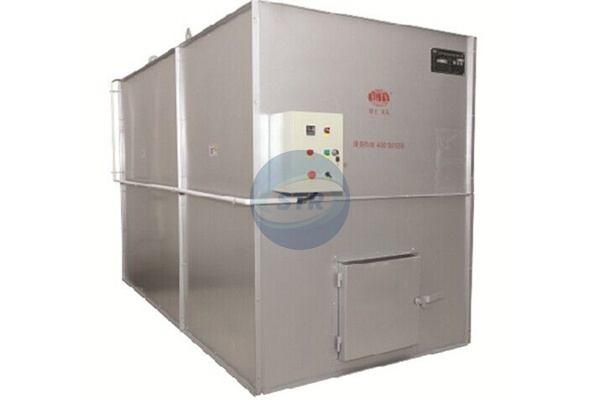

5L-45

450,000 Kcal Biomass Pellet Furnace

Compact biomass pellet furnace designed for small-scale operations. Ideal for powering single 35-ton dryers.

Heat Output 450K Kcal/h

Power 7.9 KW

Supported Dryer 5HHL-35 × 1 unit

View Details

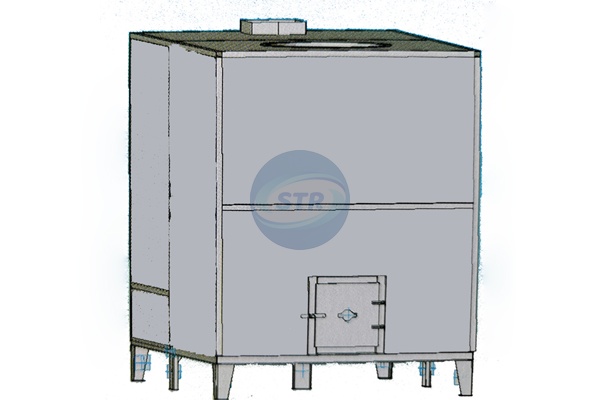

5L-60

600,000 Kcal Biomass Pellet Furnace

Medium-capacity furnace for growing operations. Balanced performance and efficiency for most applications.

Heat Output 600K Kcal/h

Fuel Consumption 120-150 kg/h

Power 15 KW

View Details

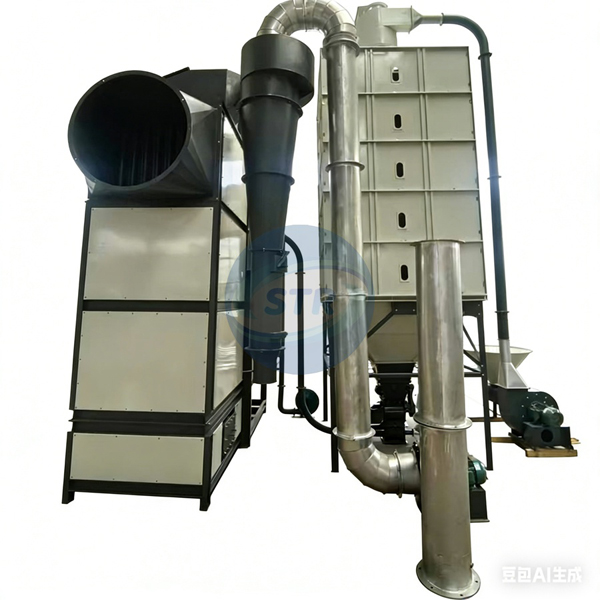

5L-80

800,000 Kcal Biomass Pellet Furnace

Large-capacity furnace for commercial operations. High efficiency and advanced automation features.

Heat Output 800K Kcal/h

Power 8.15 KW

Supported Dryer 5HHL-55 × 1 unit

View Details

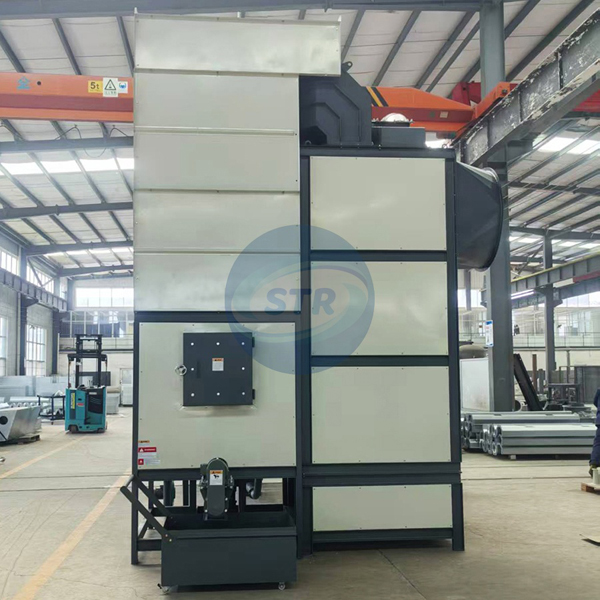

5L-90

1,000,000 Kcal Biomass Pellet Furnace

High-capacity furnace for large operations. Maximum capacity with premium efficiency and automation.

Heat Output 1.0M Kcal/h

Fuel Consumption 185-260 kg/h

Total Power 11 KW

View Details

Series Features & Advantages

Cost-Effective Operation

Fuel cost is much lower than diesel, natural gas and electric, greatly reducing drying expenses and operational costs.

Stable & Controllable Temperature

Automatic temperature control system ensures uniform and stable hot air, improving grain drying quality and consistency.

Eco-Friendly & Low Emission

Utilizes renewable biomass fuel, clean and pollution-free. Compliant with national environmental protection standards.

High Efficiency & Energy Saving

High combustion efficiency, fast temperature rise, low heat loss. Provides efficient heating with minimal energy waste.

Fully Automatic Operation

Automatic feeding, ignition and ash removal. Easy to operate with less labor, reducing operator workload and errors.

Safe & Reliable

Multiple safety protections including thermal relay, temperature sensors, leakage protector, overheating protection device. Suitable for long-term continuous industrial work.

Model Comparison

Parameter	5L-45	5L-60	5L-80	5L-90
Heat Output (Kcal/h)	450,000	600,000	800,000	1,000,000
Fuel Type	Biomass Pellets (wood pellets, rice husk pellets, etc.)
Fuel Consumption (kg/h)	N/A	120-150	N/A	185-260
Total Power (KW)	7.9	15	8.15	11
Operating Pressure	N/A	Negative Pressure	N/A	N/A
Emission Standard	N/A	National environmental standards	N/A	N/A
Supported Dryer	5HHL-35 × 1 unit	Up to 55 tons/batch	5HHL-55 × 1 unit	N/A
Ignition Mode	Manual	N/A	N/A	Auto Ignition
Feeding Mode	Manual/Auto Optional	N/A	N/A	Auto Feeding
Best Application	Small-Scale Operations	Medium Operations	Large Single Dryer	Commercial Operations

Compatible Fuel Types

Wood Pellets

Standard wood pellets made from forestry and wood processing residues. High calorific value, consistent quality, and excellent combustion characteristics.

Rice Husk Pellets

Pellets made from rice husk, an agricultural by-product. Lower cost with good availability in rice-growing regions. Sustainable utilization of agricultural waste.

Straw Pellets

Pellets made from wheat straw, corn stalks, and other crop residues. Cost-effective fuel option utilizing agricultural by-products.

Peanut Shell Pellets

Pellets made from peanut shells and other nut processing waste. Excellent calorific value and efficient combustion properties.

Find Your Ideal Biomass Heating Solution

Contact our energy experts today for a detailed analysis of which biomass pellet furnace best suits your operation's requirements and budget. We'll help you select the perfect model for your grain drying needs.
